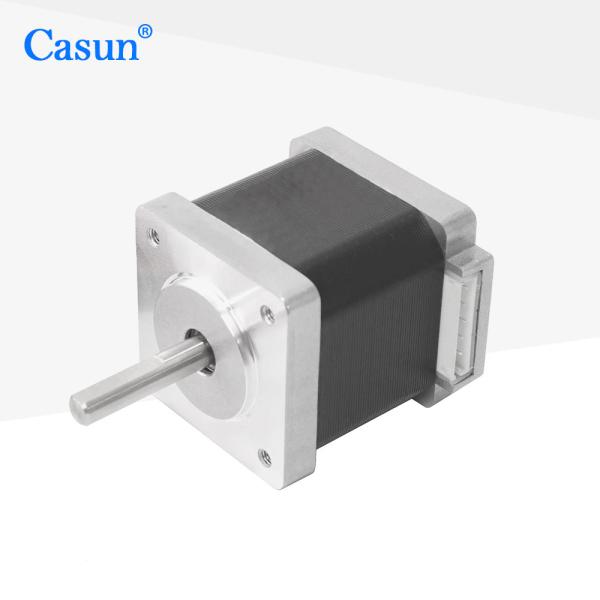

0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor

Name: 05A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor
Brand: Casun
Price: 4.14 USD

Wholesale 0.5A Casun NEMA 14 Stepper Motor 40mm Body High Torque DC Motor from china suppliers

Brand Name : Casun

Model Number : P35SHD0807-24B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 180mN.m

Current : 0.5A

Motor Length : 40mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 35 step motor can quickly respond to control signals, achieving faster motion response speed.

By giving the correct pulse sequence, basic operations such as rotation and stop can be achieved.

Features:

Bipolar or unipolar versions available
Knowledgeable manufacturing and research
Available in single or double shaft versions
CE and RoHS approved
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	180 mN.m
Resistance	4.5 ohm
Inductance	5.8 mH
Rotor Inertia	35 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
