0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

Name: 04A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
Brand: Casun
Price: 4.14 USD

Wholesale 0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera from china suppliers

Brand Name : Casun

Model Number : 35SHD4021-20

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 100mN.m

Current : 0.7A

Motor Length : 26mm

Shaft : Round Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

Despite its relatively small size, the 35mm stepper motor delivers substantial power output suitable for various small automation systems including water pumps, electronic door locks, image scanners, and fine positioning devices.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Versatile application across multiple scenarios
Ten-year warranty for confident purchasing

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	100 mN.m
Resistance	6.5 ohm
Inductance	6.0 mH
Rotor Inertia	12 g-cm²
Motor Weight	0.15 kg
Number of Leads	4
Connection	Bipolar

Appearance

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

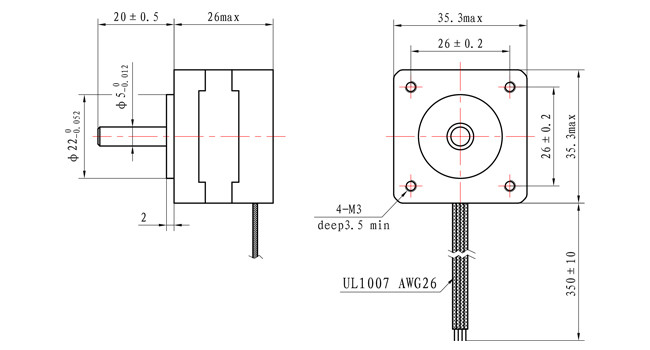

Dimensions

Customization Available

If our standard motor doesn't meet your requirements, we can customize the motor according to your specific needs.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder Brake Gearbox Connector
