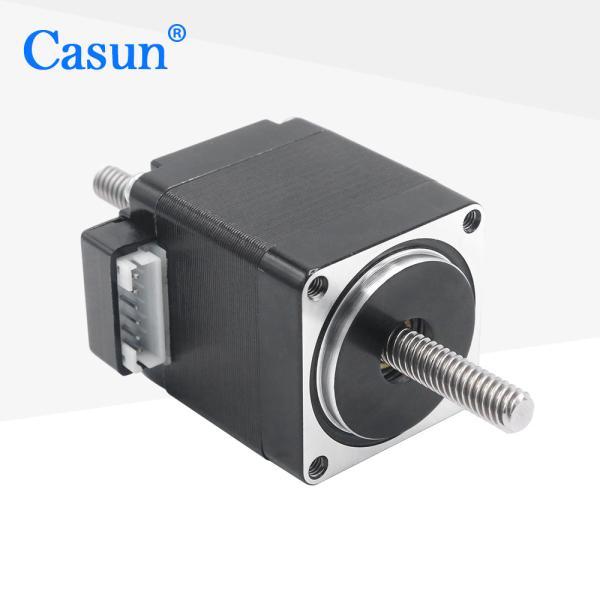

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

Name: 50mNM 012kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar
Brand: Casun
Price: 9.94 USD

Wholesale 50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar from china suppliers

Brand Name : Casun

Model Number : 28SHD0202-75TL

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $9.94-$12.8

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29xc14m

Color : black

current : 0.67Amp

Holding torque : 50mN.m

Customized : The motor can be designed &manufactured with customized request.

Contact Now

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

NEMA11 through lead screw stepper motor with lead screw holding torque 50mN.m 0.12kg tr5*4 for 3D applications. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

50mNM 0.12kg NEMA 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

Motor Specifications

Step Angle	1.8°
Frame Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	50 mN.m
Resistance	5.6 ohm
Inductance	3.9mH
Rotor Inertia	9g-cm²
Motor Weight	0.12kg
Lead Screw	Tr5X4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a Quote
